Control Valves - Mrt Process

Control Valves

Control Valves

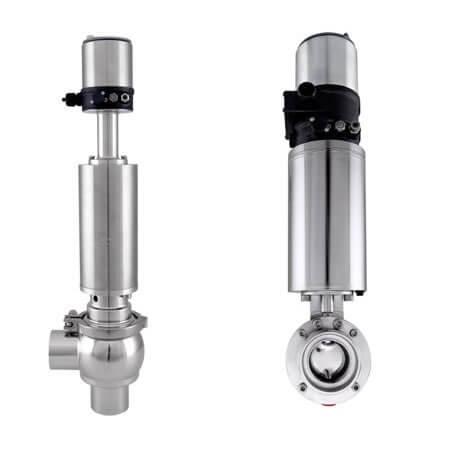

Control valves are used in process systems to decrease the pressure in liquid medium production and specifically limit volume flows.

KIESELMANN offers a wide range of control valves for this purpose. The choice of the appropriate valve depends on its application area. Butterfly control valves, which take up less space and have low cost, are suitable for simple control functions. For processes that require high-level control sensitivity, KI-DS-based single seat control valves are good choices.

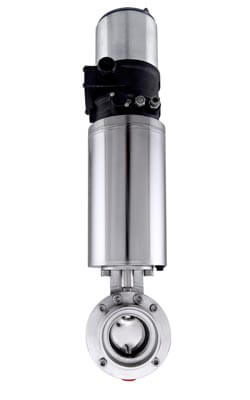

Butterfly control valves

 Sizes DN 15 – 125, 1“ – 4“
 Materials being in
 contact with the product		 1.4301 / AISI 304
  1.4307 / AISI 304L
  1.4404 / AISI 316L
 Seals:
 EPDM (SIP 140 °C, 30 min)
 HNBR (SIP 110°C, 30 min)
 Silicon (SIP 110° C, 30 min)
 Surfaces being in with
 the product:		 Ra < 0,8 μm, e-polished
 Operating pressure: DN 15-65/DN 1“-2½“ = 16bar*
  DN 80-100/DN 3“-4“ = 10bar
  DN 125-200 = 6bar
 * Flanged connector PN10 only up to 10bar

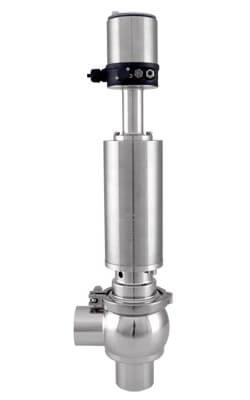

Single-seat control valves

 Sizes DN 25 – 100, 1“ – 4“

 Cv values

 0,4 – 160 m³/h

 Materials being in contact
 with the product

 1.4404 / AISI 316L
  1.4542 / AISI 630 17-4PH
 Seals:
 EPDM (SIP 140 °C, 30 min) FDA conform
 HNBR (SIP 130 °C, 30 min) FDA conform
 Surfaces being in contact
 with the product:		 Ra < 0,8 μm, e-polished
 Operating pressure: PN 16
 Actuations: - Diaphragm actuation
  - Lifting piston actuation
