Butterfly valves / Leakage butterfly valves - Mrt Process

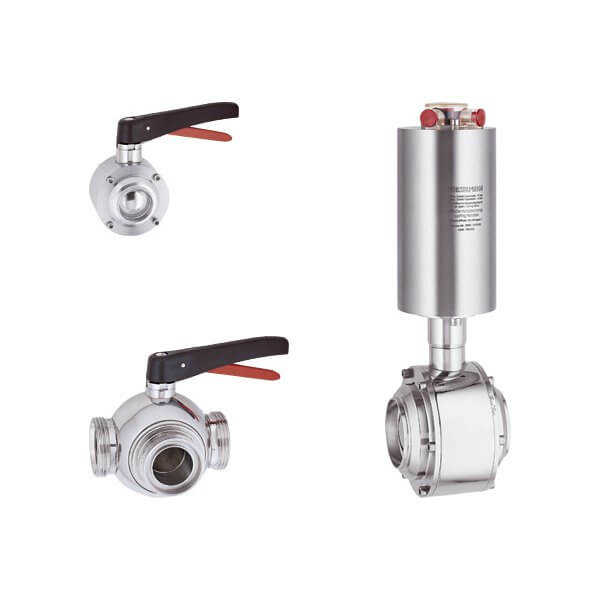

Butterfly valves / Leakage butterfly valves

Butterfly valves / Leakage butterfly valves

Butterfly valves are preferably installed on panels to minimize costs and close the tank. These valves come with various connection options but can also be used as an intermediate flange. KIESELMANN's stainless steel valves offer the highest quality, dimensional balance, and surface roughness in their class. KIESELMANN's seals have a long service life due to dimensional optimization.

  •  ► Easy installation
  •  ► Ergonomic temperature control button (Several color options available)
  •  ► Structure designed for easy maintenance
  •  ► Flow/leakage protection to prevent costs (Butterfly valve leakage)
  •  ► Choice of automation
  •  ► Three different actuator options - Suitable for PDA75 / PDA 100 / PDA 125 connections
  •  ► High torque actuator options

Technical Data

Sizes
Butterfly valves DN 15-200, 1"-4"
Leakage butterfly valves  DN 50-150, 2"-4"
Materials with product contact 1.4301 / AISI 304
  1.4307 / AISI 304L
  1.4404 / AISI 316L
Leakage butterfly valves in  1.4404 / AISI 316L
Seals EPDM (SIP 140° C, 30 min)
  HNBR (SIP 110° C, 30 min)
Only buttefly valves Silicone (SIP 110° C, 30 min)
Only buttefly valves Viton (SIP 90° C, 30 min)
Surfaces with product contact Ra < 0.8 μm e-polished
Operating pressure
depending on type 4-16 bar
Vacuum butterfly valves 1.5×10-6 mbar l/s
Vacuum leakage butterfly valves 1.5×10-5 mbar l/s
